5amp Rectifier

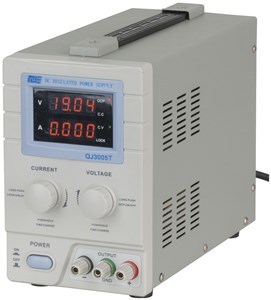

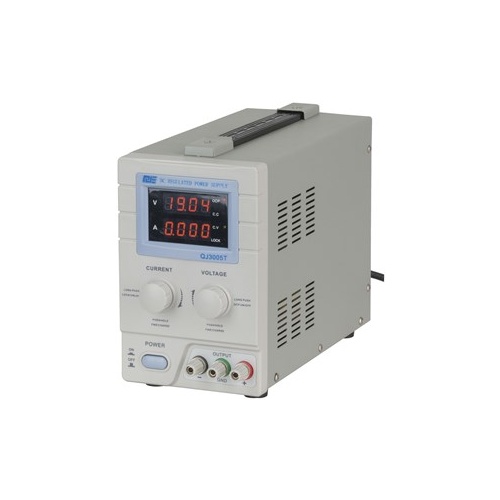

Power your devices with accuracy and the confidence that only comes with a professional lab power supply. Select precise voltage level and current limits to prevent overheating, burnout, and over-current. Of course the output is short-circuit protected too. The compact construction uses surface mount technology and a powerful internal cooling system to deliver a highly flexible power source. With ripple voltage a tiny 1mV, you know you’re getting precisely the voltage required, reducing the risk of burnout or damage when testing and prototyping sensitive components. Output voltage is adjustable from 0 to 30VDC, and output current can be limited between 0 and 5A. Banana plug/binding posts provide output on the front of the unit, while a bright backlit LCD display keeps you informed. Includes a short banana to alligator lead set.

Features:
• Precise voltage level and current limit settings
• 1mV ripple voltage
• Avoid overheating, burnout, and over-current
• Easy-to-use LCD display panel

Specifications:
Input voltage: 220-240AC 50-60Hz
Output voltage: 0-30VDC adjustable (10mV accuracy)
Output current: 0-5A adjustable (1mA accuracy)
Ripple voltage:     1mV
Ripple current: 3mA
Dimensions: 270(L) x 120(W) x 185(H)mm
Weight: 4.8kg
